Vault Proxy

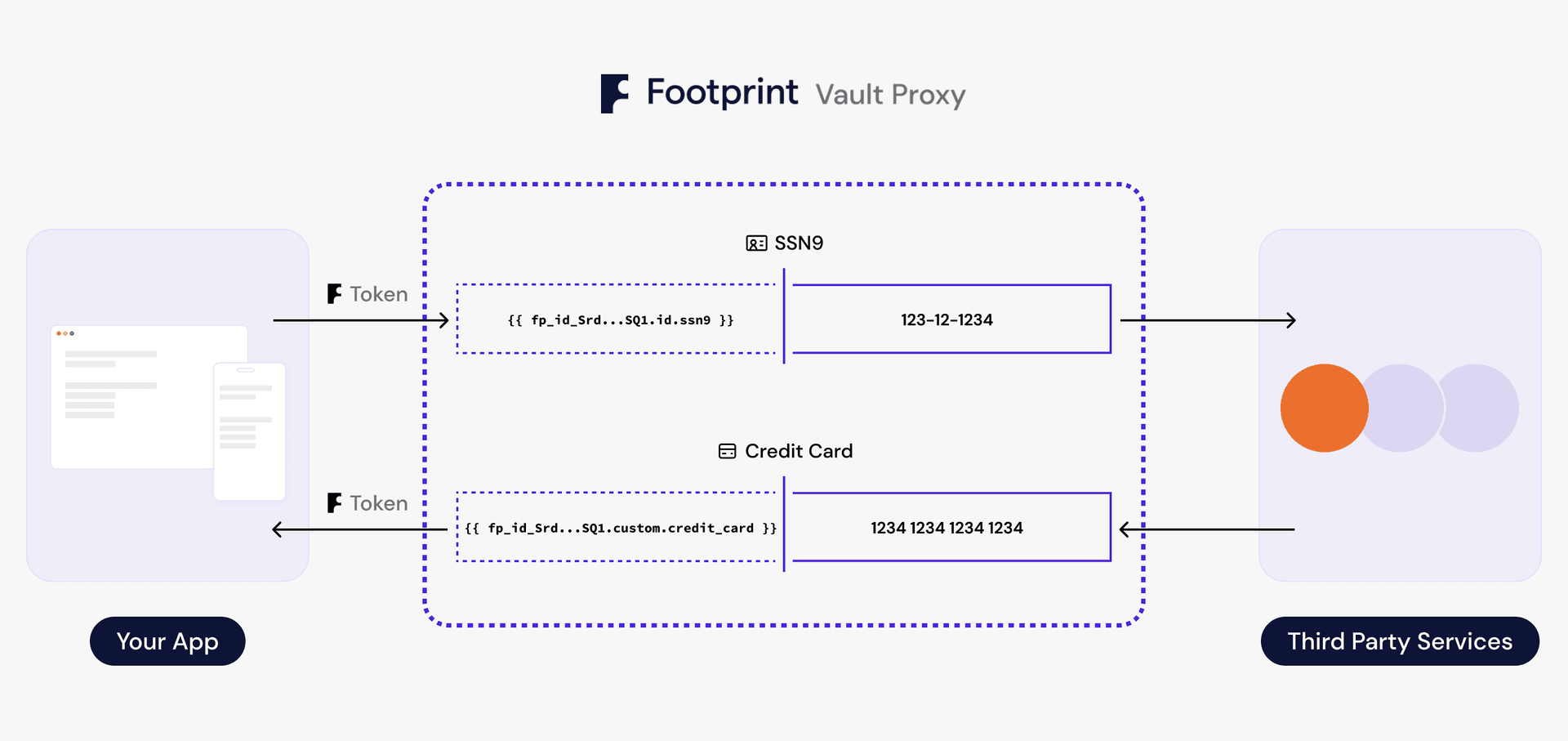

Vault Proxy forwards a request from your backend to a third-party service, such as a payment gateway, and fills in vaulted data on the way, so sensitive data such as PII and PCI data never touches your application code or infrastructure in plaintext. Keeping that data off your network also helps you meet compliance requirements such as PCI.

Vault Proxy supports:

Configuration

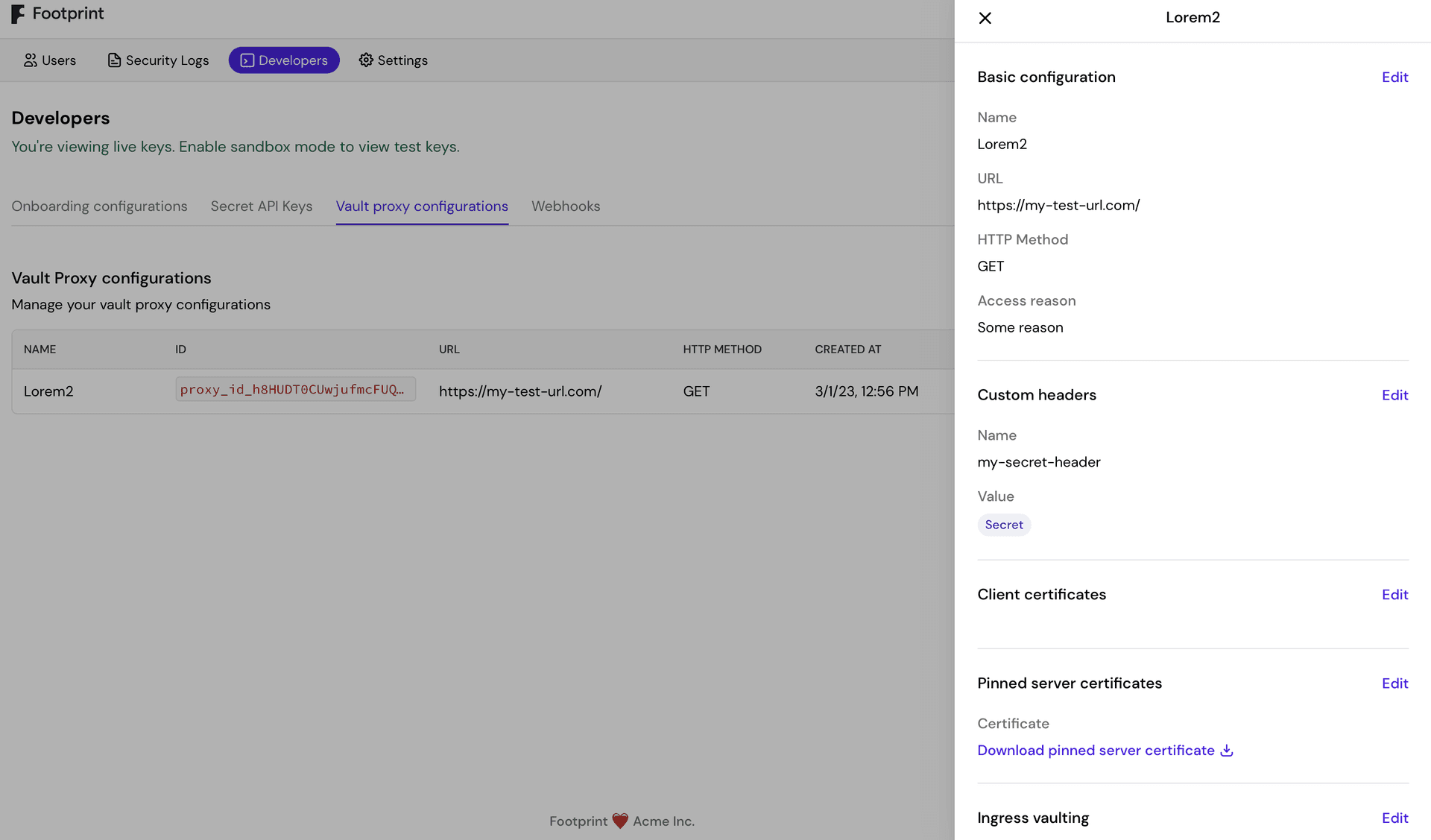

You configure the proxy in one of two ways: save a configuration in the dashboard or through the admin API, or pass every setting as headers on each request ("just-in-time"). Both support the same capabilities. A saved configuration also holds the destination's authentication credentials, so you do not manage them in your requests.

Just-in-time

To proxy to any destination without a saved configuration, send this header:

By configuration

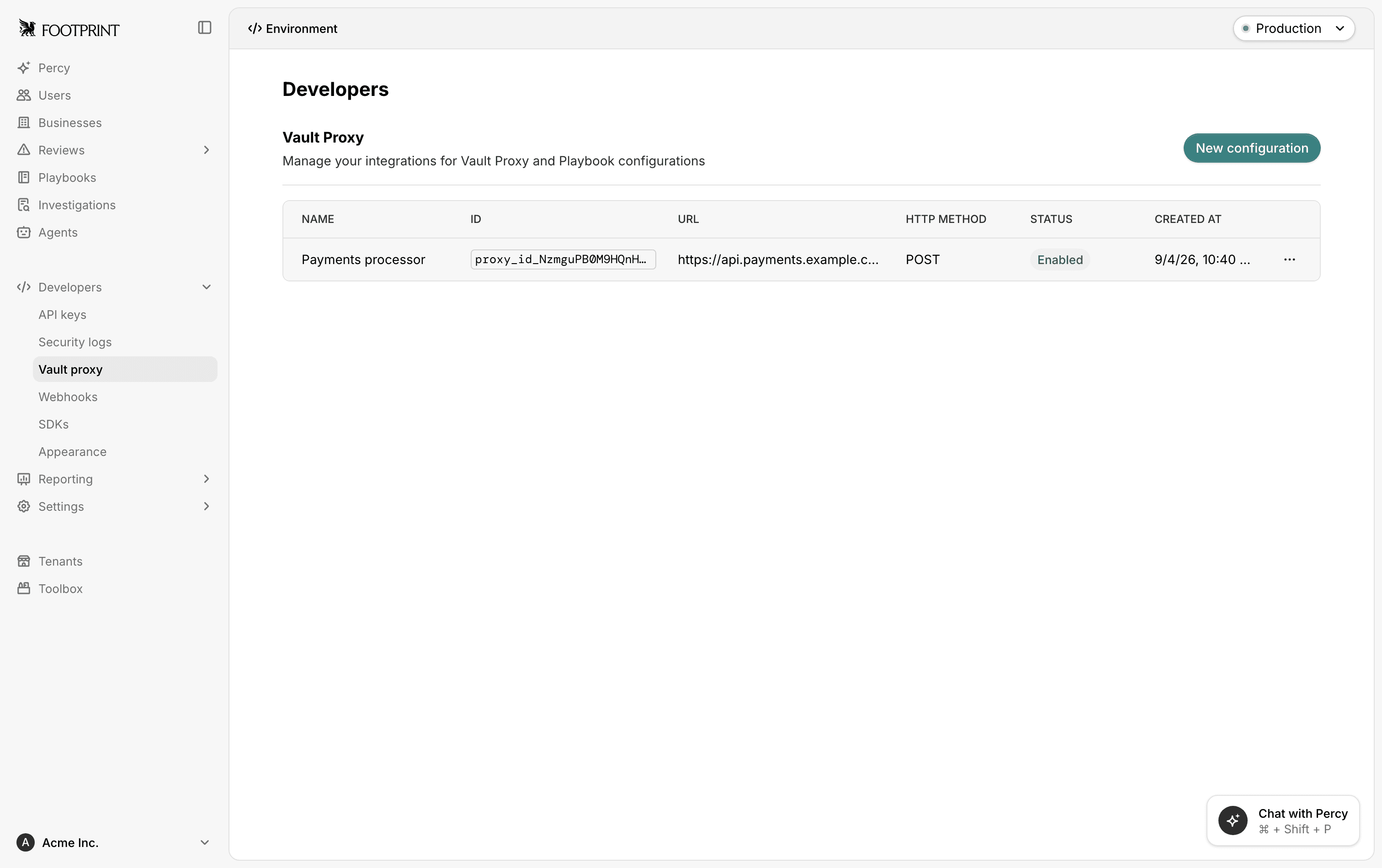

To use a configuration you saved in the dashboard or through the API, put its id in the request path:

bash
1curl  https://api.onefootprint.com/vault_proxy/proxy_id_AY5ec7I5QDUFWG8BAQG78k \
2  ...other parameters...

Basics

Making a proxy request

A Vault Proxy request is an authenticated HTTP POST to /vault_proxy/jit or /vault_proxy/{proxy_config_id}.

For example, this request fills in one user's vaulted data and forwards the body to a payment API:

bash
1
2curl https://api.onefootprint.com/vault_proxy/jit \
3    -u sk_test_CXUsbCR8j2kH6e5GeEl8eSBnQTIPCUaKpv: \
4    -X POST \
5    -H 'x-fp-proxy-target-url: https://payments.acmebank.com' \
6    -H 'x-fp-proxy-fwd-custom-header: custom value' \
7    -H 'x-fp-proxy-fwd-content-type: application/json' \
8    --data '{
9        "full_name": "{{ fp_id_tctecBEvGc98V7Vx4MhZU.id.first_name }} {{ fp_id_tctecBEvGc98V7Vx4MhZU.id.last_name }}",
10        "last4_ssn": "{{ fp_id_tctecBEvGc98V7Vx4MhZU.id.ssn4 }}",
11        "cc": "{{ fp_id_tctecBEvGc98V7Vx4MhZU.custom.credit_card }}",
12        "cc_exp": "{{ fp_id_tctecBEvGc98V7Vx4MhZU.custom.credit_card_exp }}",
13        "cc_cvc": "{{ fp_id_tctecBEvGc98V7Vx4MhZU.custom.credit_card_cvc }}"
14    }'

Footprint detokenizes each field in the body inside the vault enclave, then sends the updated plaintext body to the target (here https://payments.acmebank.com) with the headers 'Custom-Header: custom value' and 'Content-type: application/json'.

Control headers change how the upstream request behaves:

Token body template format

Vault Proxy replaces every token in the request body with the decrypted plaintext value. A token starts with {{ and ends with }}, and you can write it in one of two forms.

Fully-qualified tokens. Write {{ <footprint_user_token>.<data_identifier> }}, where <footprint_user_token> is the user's fp_id and <data_identifier> is any identity (KYC) field, prefixed id., or any custom field you defined, prefixed custom..

Inferred-user tokens. When every token refers to one user's vault, name that user in a header instead:

Each token then omits the <footprint_user_token> part and becomes {{ <data_identifier> }}.

Filter functions

Filter functions transform a value on its way into or out of the vault, as in template languages such as Jinja and Handlebars. Append zero or more filters to a token, separated by |.

For example:

• {{ id.last_name | to_ascii | to_uppercase }} converts Doè to DOE.
• {{ id.dob | date_format("%Y-%m-%d", "%A in %B of %y") }} converts 1988-12-30 to Friday in December of 88.
• {{ custom.ach_account| replace("-", "") }} converts 12-1212-1212 to 1212121212.

Ingress vaulting

Ingress vaulting rules pick fields out of the destination's response and vault them, so the proxy tokenizes incoming data as well as detokenizing outgoing data.

You can define all of your ingress rules in the dashboard or through the admin API and invoke the configuration by its id at api.onefootprint.com/vault_proxy/{proxy_id}.

A saved configuration does not say which user's vault to write to, so a request that uses its ingress rules must carry this header:

For example, send the header 'x-fp-id: fp_id_tctecBEvGc98V7Vx4MhZU' when the configuration's rule is custom.credit_card_number=$.data.card.number.

Just-in-time ingress vaulting

Without a saved configuration, pass each rule as an x-fp-proxy-ingress-rule header in the form <footprint_token_id>.custom.<property_name>=<path-to-value>, where the path syntax depends on the response content type. When one or more x-fp-proxy-ingress-rule headers are present, you must also send a single x-fp-proxy-ingress-content-type header. The left side of a rule uses the same token format as the body, without the {{ and }} delimiters.

JSONPath

Ingress supports JSON responses only, with JSONPath to select the value. This rule vaults a card number from the response:

bash
1-H 'x-fp-proxy-ingress-rule: fp_id_tctecBEvGc98V7Vx4MhZU.custom.credit_card_number=$.data.card.number'

Given the response below, it extracts 4242424242424 and vaults it as custom.credit_card_number in the vault of fp_id_tctecBEvGc98V7Vx4MhZU:

json
1{
2  "data": {
3    "card": {
4      "number": "4242424242424",
5      "expiration": {
6        "month": "04",
7        "year": "25"
8      }
9    },
10    "processor": "amex"
11  }
12}

To reformat a value before it is vaulted, append filter functions to the right of the JSONPath selector:

<fp_id>.<data_identifier> = <json_path> | <filter_function> | <filter_function> | ...

For example, given this response body:

json
1{
2  "card": {
3    "number": "4242-4242-4242-4242"
4  }
5}

this rule strips the dashes before vaulting:

fp_id_tctecBEvGc98V7Vx4MhZU.card.primary.number = $.card.number | replace("-", "")

The result is fp_id_tctecBEvGc98V7Vx4MhZU.card.primary.number with the value 4242424242424242.

Reflection

The reflect endpoint runs the token substitution and returns the result to you instead of forwarding it to a destination: the "first hop" of the proxy on its own. Use it to decrypt data into a complex object or to test your Vault Proxy configurations.

For example, this request returns a sentence with two vault fields filled in:

bash
1curl https://api.onefootprint.com/vault_proxy/reflect \
2      -u sk_test_0Te2YtSveZpWLMjQgNRkCv6siiC86iMIkZ: \
3      -H 'x-fp-id: fp_id_JHSfbHz7VdxfoPXuaOlZqb' \
4      --data \
5      'The name on my credit card is {{ card.primary.name | to_ascii | to_uppercase }}. I was born on a {{ id.dob | date_format("%Y-%m-%d", "%A in %B of %y") }}.'
6
7The name on my credit card is JANE DOE. I was born on a Friday in December of 88.

Send a POST to /vault_proxy/reflect with the body written in proxy token syntax, filter functions included. Add an x-fp-id header to use inferred-user tokens and omit the fp_id from each token.

Advanced proxy settings

Vault Proxy also supports mTLS (client certificates), certificate pinning (custom server certificates), and vaulting selected parts of the response. The sections below configure them with just-in-time headers. We recommend saving them in the dashboard instead: it is simpler and more secure, because you do not manage authentication secrets for the destination service yourself.

Client certificate authentication (mTLS)

To connect to the destination with mutual TLS (mTLS), supply a client certificate and key. Only a single certificate and key pair is accepted. Encode both as PEM, then percent-encode them.

Service certificate pinning and root CAs

Pinning is optional. To enable it, supply one or more server certificates or root CAs to validate the destination's server certificate against. When you supply several, the connection succeeds if any one of them validates the incoming certificate chain. Encode each as PEM, then percent-encode it.

Header and configuration reference

Every header the proxy accepts, for configuring and invoking it just-in-time. Values stored in a saved configuration do not need to be sent on each request.

Playground

Footprint's ditto server echoes the headers and body of any request sent to https://ditto.footprint.dev, so you can test a proxy configuration against it.

Basic usage

A direct request shows what ditto echoes:

bash
1$ curl -i -X POST https://ditto.footprint.dev -H 'Test-Header: FootprintRocks'  --data '{"hello": "world" }'
2
3test-header: FootprintRocks
4content-type: application/x-www-form-urlencoded
5
6{"hello": "world" }

Set https://ditto.footprint.dev as the proxy target to check that decryption and token templating produce the body you expect.

Testing with client certificates

To test mTLS with a client certificate, send the request to https://ditto.footprint.dev:8443 (port 8443). The server certificate is self-signed, so either trust it or pin it in the configuration. With a client certificate, the echo includes its serial:

bash
1$ curl --cert client.crt --key client.key -i -k -X POST https://ditto.footprint.dev:8443 -H 'Test-Header: FootprintRocks' --data '{"hello": "world" }'
2
3x-ditto-client-cert-serial: 12431179266346922388
4test-header: FootprintRocks
5content-type: application/x-www-form-urlencoded
6
7{"hello": "world" }

When a client certificate is used, ditto returns its serial in the x-ditto-client-cert-serial header.
